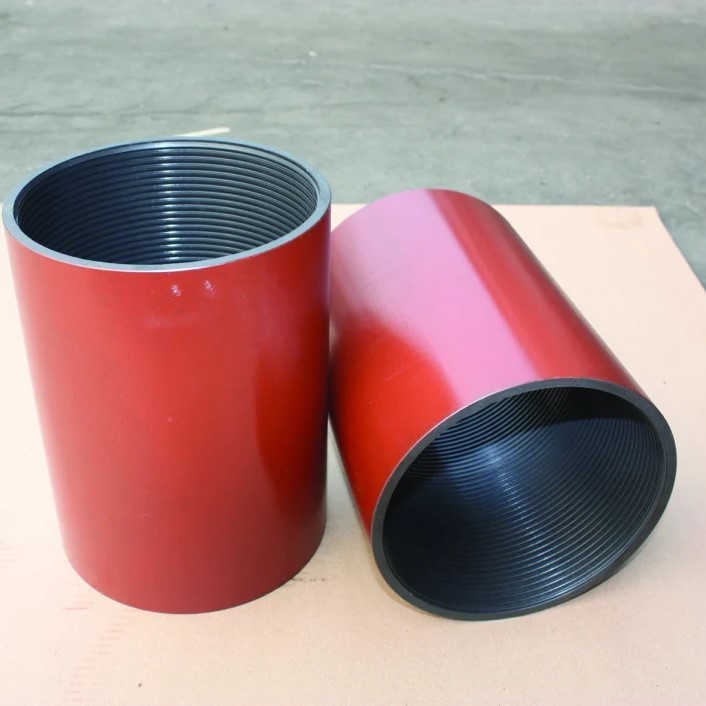

Casing And Tubing Coupling
Category：
Keyword：
Product Description
Description
About Tubing coupling
Normally tubing coupling OD maximum is 4 1/2”, as the tubing pipe is applied for the drilling activities (Inside the tubing is the sucker rod to drill/pump the oil), couplings type is more various and rigorous than casing, mostly used is thicken type upset coupling (Internal upset and external upset), for short is EUE coupling, it is the most favorable in tubing connections. Tubing with EU end (EUE) coupling connection also called UPTBG. Because of the end of the tubing is thickened (upset), the connecting stress is better than buttress coupling.
Buttress coupling another type used for tubing connections, it has the same thickness of the pipe body, called NU end (NUE)tubing or TBG.
Features
The oil tubing coupling can solve the problem of fatigue fracture in the existing coupling due to stress concentration. Oil tubing end is connected to the inside wall of the coupling in a tapered thread. The coupling body end and oil tubing are connected with same thread pitch flat thread. The coupling is not easy to produce fatigue fracture, and has good connection effect. It can prevent the accident of oil well pipe string break effectively.
About Casing coupling
Casing coupling is for the dimensions more than 4 1/2 inch. Differently than tubing coupling is, casing coupling normally does not need to be thickened (Non-upset), which means no upset casing coupling, so it has following types:
• BTC: Buttress coupling
• LTC: Long buttress coupling
• STC: Short buttress coupling
All three types has same thickness of the casing pipe body, just have different lengths.
The oil casing coupling is a necessary piece used to connect the two casing. The coupling manufacturing method is the same as seamless pipe. The steel pipe ends with internal thread to connect with the upper and lower casing. In order to ensure the joint tightness, the precision of screw thread is strictly required.
Seamless and ERW Casing
|
Specification |
API 5CT |
|
Grades |
K55, N80, L80, C95, P110, Chrome, J55(Modified), J55 (API), PS80 |
|
Special Grades |
For sour services and for deep well with high collapse properties |
|
Dimensions |
OD 4" - 26" WT - 0.2 -0.5" |
|
Length range |
1, 2 or 3 |
|
Thread connections |
API (STC and LTC), BTC, extreme line, etc. |
Seamless and ERW Tubing
|
Specification |
API 5CT |
|
Grades |
J55 (API) J55(Modified), N80, L80, L80 13Cr, P110, Q125, H40 (API) |
|
Thread connections |
API 5B - Last Edition or Premium, EUE, NUE, special seal, metal-to-metal seal and VAGT |
Specification
Casing Couplings Short Thread Specifications:
|
Casing Couplings |
Casing Size OD (inches) |
Coupling Size OD (inches) |
Length (inches) |
Weight per Coupling (lbs) |
Palletized Carton Quantity |
 |
4-1/2 |
5.000 |
6.250 |
8.05 |
343 |

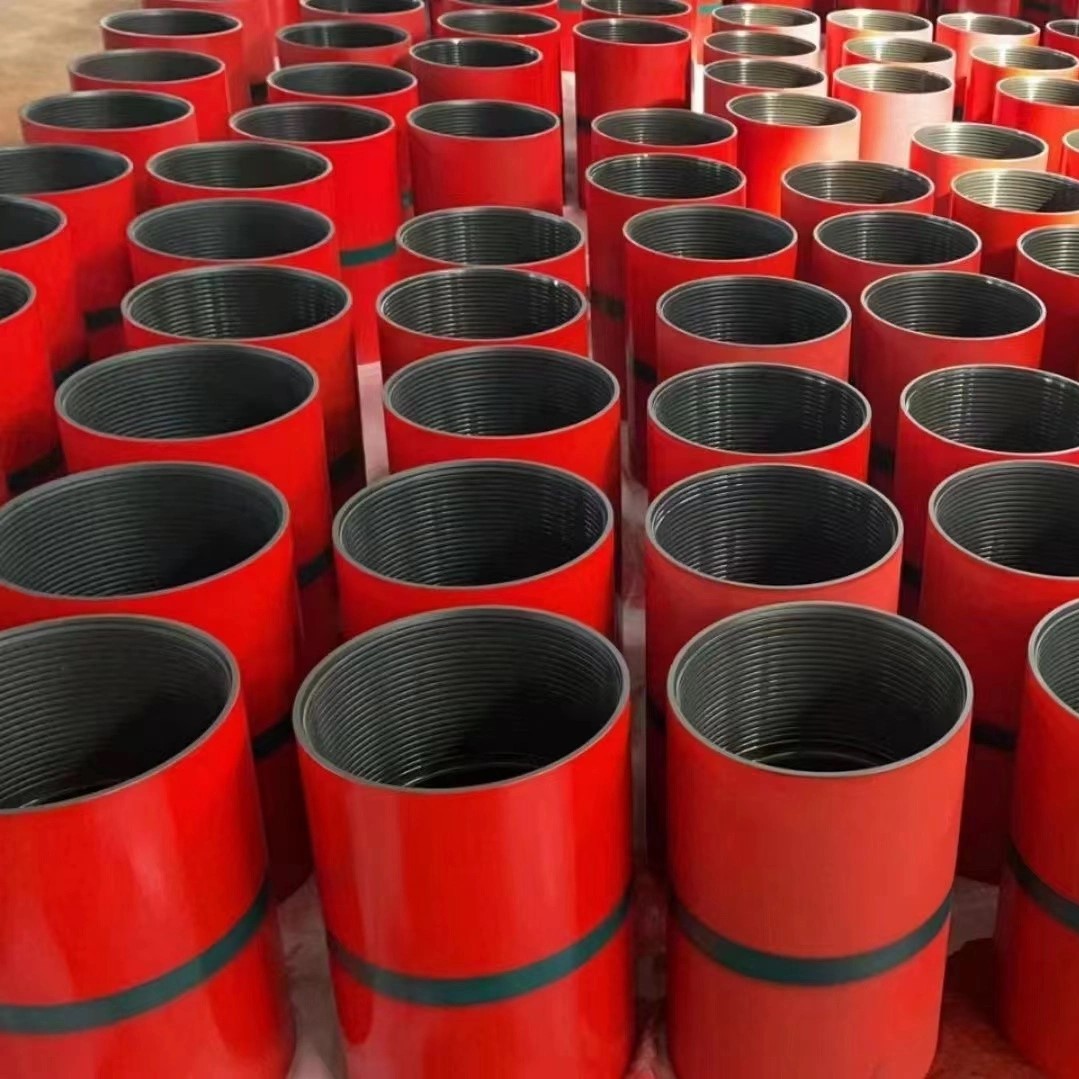

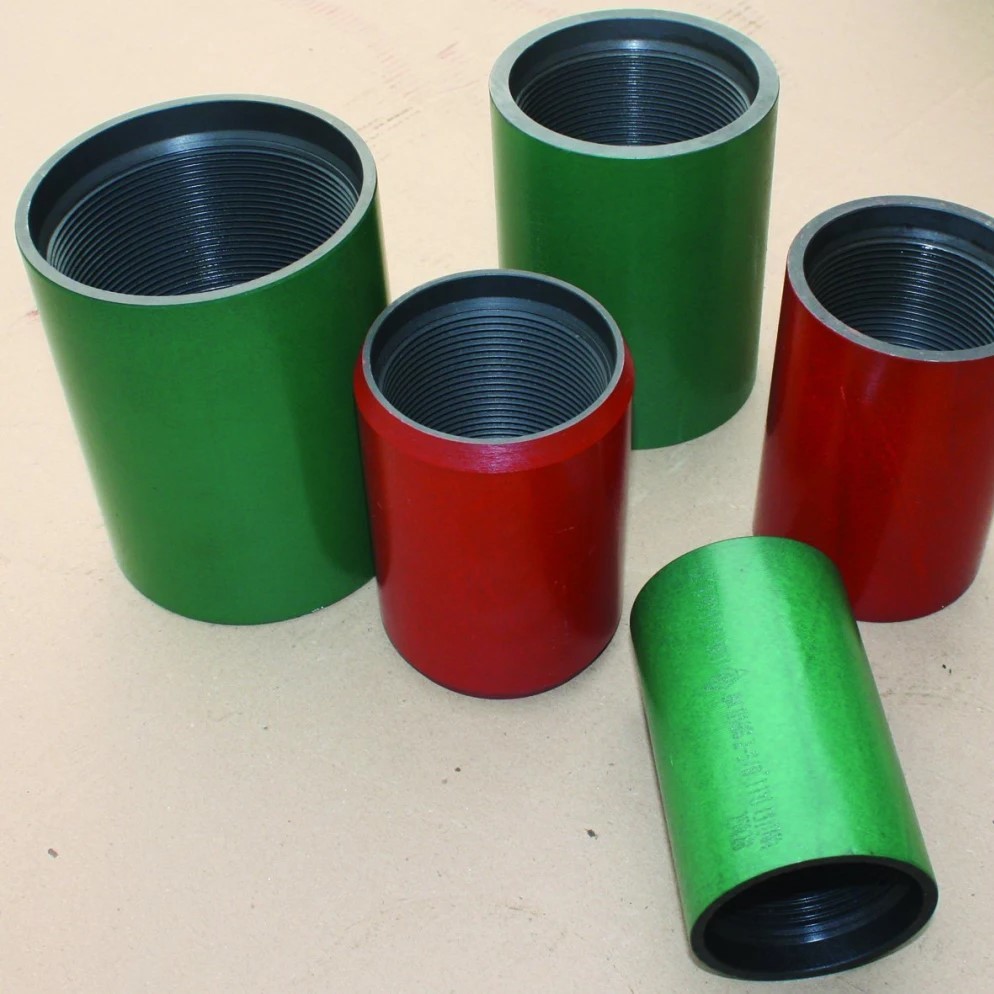

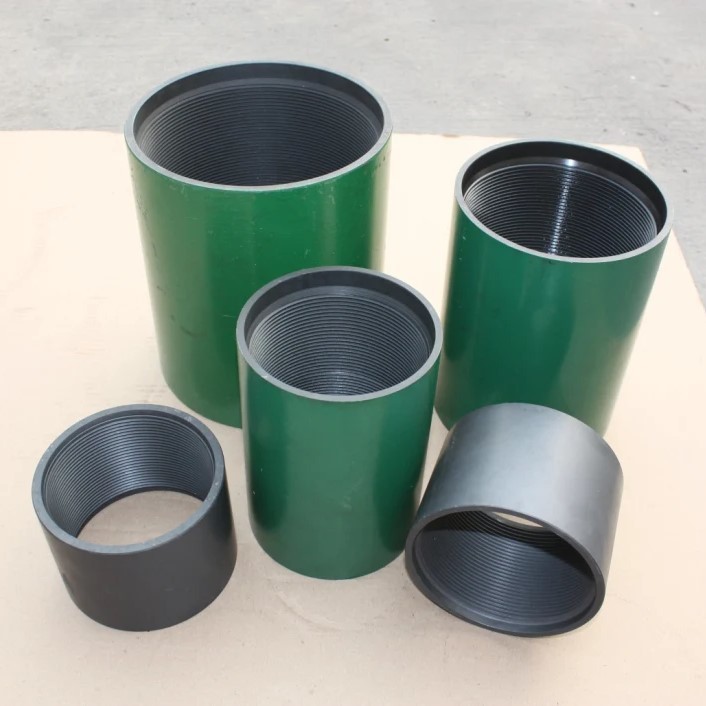

Products Display

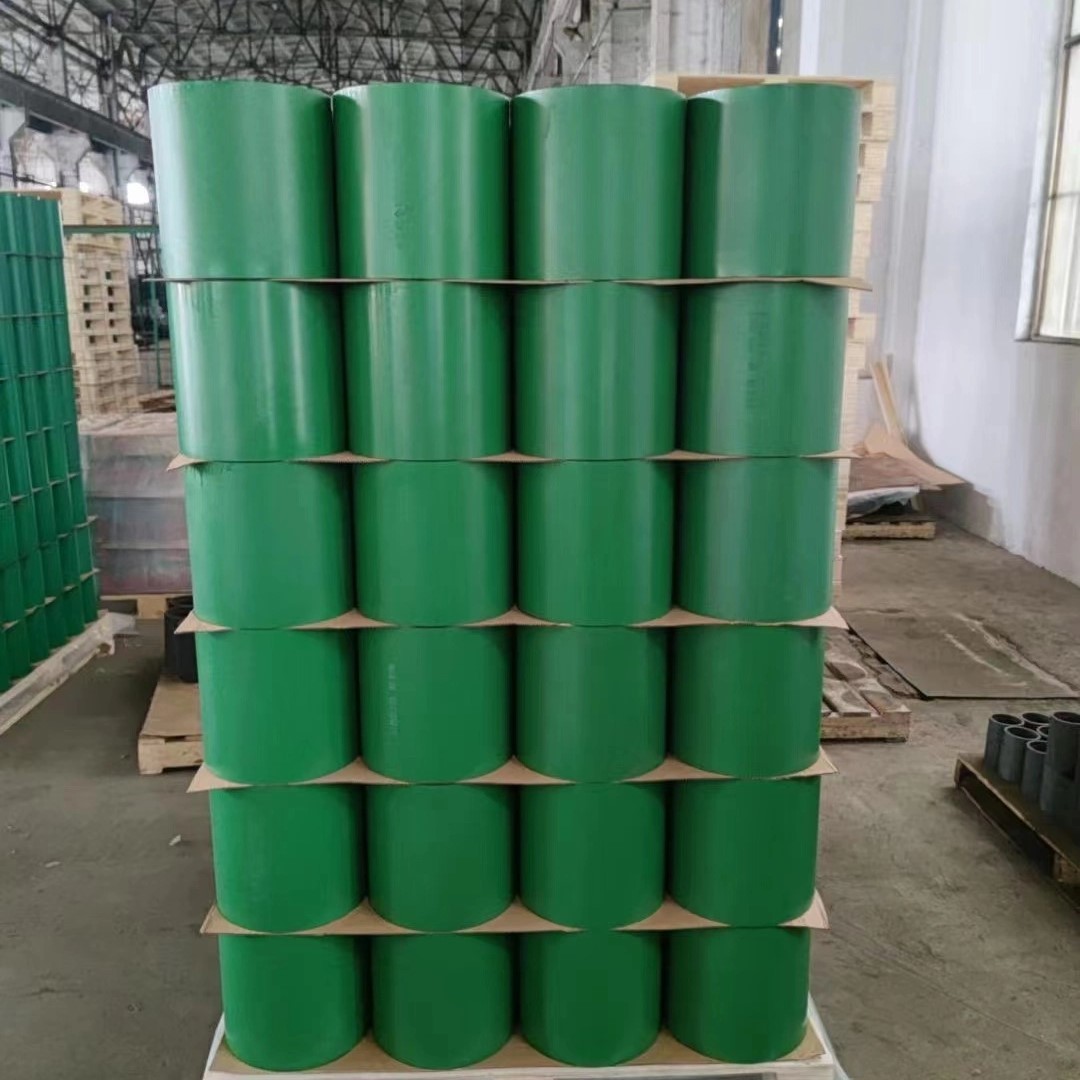

Warehouse Storage
We are a manufacturer and exporter specializing in the research, production, sales, packaging and after-sales service of metal materials. We have been engaged in export trade for more than 10 years and have rich experience in this field.

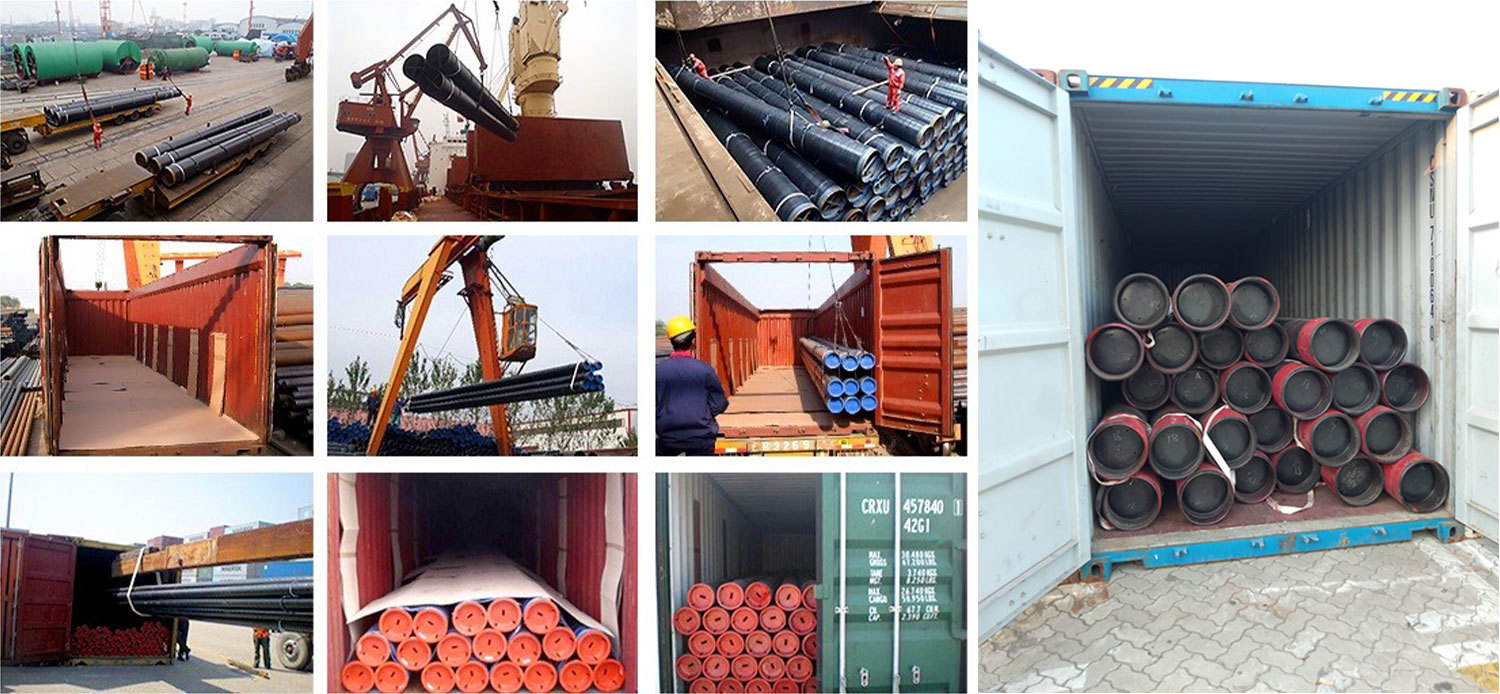

Packing and shipping
Our main products include carbon steel plate, carbon steel pipe, stainless steel plate, stainless steel pipe, galvanized sheet, galvanized coil, weathering steel, wear-resistant plate, aluminum plate, etc.
Customer feedback
With many competitive advantages such as various products, large inventory, high quality, low price, short delivery time, good after-sales service, our products are popular in China and exported to South Korea, Japan, Russia, Germany, the United Kingdom, Austria, the Czech Republic, Hungary, the Netherlands, Slovenia, Bulgaria, Egypt, Saudi Arabia, Iran, Kuwait, the United Arab Emirates, Türkiye, Israel, Syria Lebanon, Jordan, Yemen, Cyprus, Philippines, Vietnam and Malaysia...

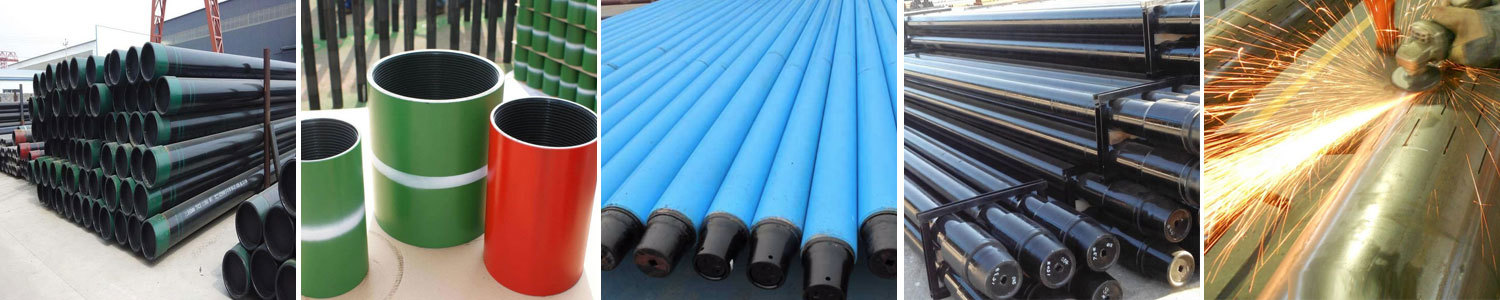

Application field
