ERW Steel Pipe

ERW steel pipe is a straight seam electric resistance welded pipe, abbreviated as ERW pipe, which is a round pipe welded by steel plates. It is used to transport vapor and liquid objects such as oil and n atural gas, and can meet various requirements of high and low pressure.

Category：

Welded Pipe

E-mail:

diana@baixinxinmetal.com

Product Message

ERW Steel Pipe:

Pipe Type: ERW Pipe, ERW Steel Pipe, Electric Resistance Welded Pipe
Application: For Low Pressure Fluid Transmission, Machinery Manufacturing

Specification: OD: 21.3mm ~ 660mm

WT: 1mm ~ 17.5mm

LENGTH: 0.5mtr ~ 22mtr (5.8/6/11.8/12 meters, SRL, DRL)

Standard & Grade: API 5L PSL1/PSL2 Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70
ASTM A53, ASTM A500, JIS G3466, ASTM A252, ASTM A178, AN/NZS 1163, AN/NZS 1074, EN10219-1, EN10217-1

End: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends

Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating

Packing: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped

Production Process for ERW steel pipe:

1.Uncoiling --- 2. Leveling --- 3. End cutting --- 4. End shearing welding --- 5. Supercoil accumulator --- 6. Edge cutting --- 7. Ultrasonic detection --- 8. Forming --- 9. Electric induction welding --- 10. Ultrasonic detection for weld seam --- 11. Medium frequency heat treatment --- 12. Air cooling --- 13. Water cooling --- 14. Sizing --- 15. Flying cutting --- 16. Flush-out --- 17. Cropping --- 18. Flattening testing --- 19. Straightening --- 20. End facing and bevelling --- 21. Hydrodynamic testing --- 22. Ultrasonic detection for weld seam --- 23. Ultrasonic detection for pipe end --- 24. Visual and dimensions inspection --- 25.Weighting and measuring --- 26. Marking --- 27. Coating --- 28. Pipe-end protection --- 29. Bending --- 30. Shipping

Specification of ERW steel pipe:

API 5L/ASTM A53 GR.B (Small Diameter ERW Steel Pipe)
Outside Diameter	Wall Thickness	Outside Diameter	Wall Thickness
外径 (mm)	壁厚 (mm)	外径 (mm)	壁厚 (mm)
33.4 (1")	2.1-2.4	Φ133	3.0-5.75
	2.5-3.25		6.0-7.75
	3.5-4.0		8.0-10
42.3 (1.2")	2.1-2.4	Φ139.7 (5″)	3.0-4.5
	2.5-3.5		4.75-5.75
	3.75		6.0-7.75
	4.0-5.0		8.0-10
48.3 (1.5")	2.1-2.4	Φ152	3.0-4.5
	2.5-3.25		4.75-5.75
	3.5-3.75		6.0-7.75
	4.0-4.25		8.0-10.0
	4.5-6.0	Φ159	3.25-6.75
Φ60.3 (2″)	3.0-4.0		6.8-7.75
	4.25-4.75		8.0-10.0
	5.0-5.75		10.0-11.75
Ф73	3.0-4.75	Φ165	3.0-6.0
	4.8-5.25		6.25-7.0
	5.5-7.0		/
Φ76.1

Products Display

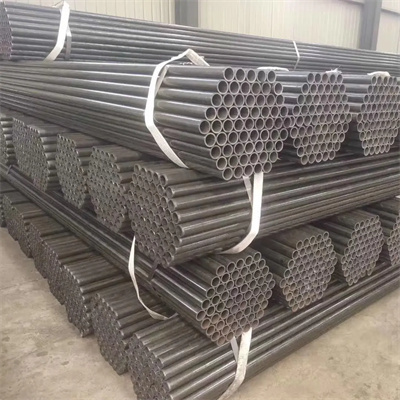

Warehouse Storage

We are a manufacturer and exporter specializing in the research, production, sales, packaging and after-sales service of metal materials. We have been engaged in export trade for more than 10 years and have rich experience in this field.

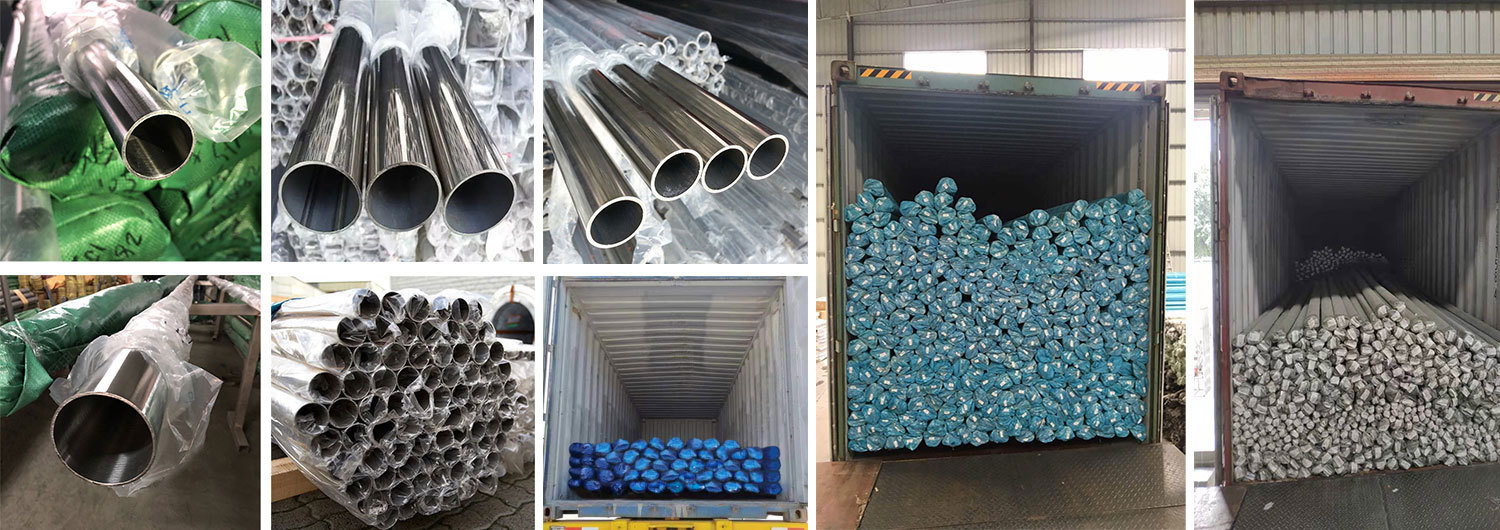

Packing and shipping
