Seamless Alloy Steel Tube
Category：
Keyword：
Product Description
Seamless Alloy Steel Tube
Type: Alloy Pipe, Alloy Tube, Alloy Steel Pipe, Alloy Steel Tube
Application: In Petroleum, Aerospace, Chemical, Power, Boilers, Military Industry
Specification: Outside Diameter: 1/8'' ~ 26''
Wall Thickness: SCH 30, 30, 40, 60, 80, 120, 140, 160, XS, XXS, STD
Length: Single Random, Double Random, Cut Length max to 23m
Standard & Grade: ASTM A333, A335 P5/P9/P11/P22/P91, DIN 17175, JIS G3458
End: Plain End, Beveled End, Thread End
Packing: Bundled with Hemp Rope/In Bulk
Alloy pipe is a kind of seamless steel pipe, its performance is much higher than that of general seamless steel pipe, because this type of steel pipe contains more Cr, its high temperature resistance, low temperature resistance, corrosion resistance performance is much better than other Steel pipe , so the alloy pipe is widely used in petroleum, aerospace, chemical, electric power, boiler, military and other industries.
| Product | SEAMLESS / ERW / SAW ALLOY STEEL PIPE |
| Dimension | 6 mm - 1080 mm |
| Thickness | 1mm - 135 mm |
| Length | 3 m - 12 m or according to the requirements of clients |
| Standard | ASTM GB DIN |
| Steel grade | A106/53/179/214/192/210 A/B/C ST37.2/35.4/35.8/52/52.3/52.4/42/45 10# 20# 45# P2, P12, P11, P22, P5, P9, P91 T2, T11,T5,T9,T22, 4140, 12CrMo, 15CrMo, 12Cr2Mo, 1Cr5Mo, 2CrMo4, 1Cr9Mo, 10CrMo910, etc. |
| Trade terms | FOB/CIF/CFR |
| Payment terms | T/T, L/C |
| Delivery port | Tianjin, China |
| Delivery time | 10 or according to the real quantity of the tubes |
| Surface treatment | Black painting Varnish painting 3PE Hot galvanized or other coating according to your requirements Bare tube |
| End of tubes | Beveled, plain, thread, plastic caps |
| Inspection | Ultrasonic examination, eddy inspection, hydrosttic testing etc. |
| Package | Bundles, lossen or according to your requirements |
| Certificate | API 5L/5CT, ISO, PED etc. |
Technical data
Chemical Composition
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % |
| 0.05-0.15 | 0.30-0.60 | 0.025 max | 0.025 max | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
Mechanical Properties
| Tensile Strength, MPa | Yield Strength, MPa | Elongation, % |
| 415 min | 205 min | 30 min |
Outside Diameter & Tolerance
| ASTM A450 | Hot rolled | Outside Diameter, mm | Tolerance, mm |
| OD≤101.6 | +0.4/-0.8 | ||
| 101.6＜OD≤190.5 | +0.4/-1.2 | ||
| 190.5＜OD≤228.6 | +0.4/-1.6 | ||
| Cold Drawn | Outside Diameter, mm | Tolerance, mm | |
| OD＜25.4 | ±0.10 | ||
| 25.4≤OD≤38.1 | ±0.15 | ||
| 38.1＜OD＜50.8 | ±0.20 | ||
| 50.8≤OD＜63.5 | ±0.25 | ||
| 63.5≤OD＜76.2 | ±0.30 | ||
| 76.2≤OD≤101.6 | ±0.38 | ||
| 101.6＜OD≤190.5 | +0.38/-0.64 | ||
| 190.5＜OD≤228.6 | +0.38/-1.14 | ||
| ASTM A530 & ASTM A335 | NPS | Outside Diameter, inch | Tolerance, mm |
| 1/8≤OD≤1-1/2 | ±0.40 | ||
| 1-1/2＜OD≤4 | ±0.79 | ||
| 4＜OD≤8 | +1.59/-0.79 | ||
| 8＜OD≤12 | +2.38/-0.79 | ||
| OD>12 | ±1% |
Wall thickness & Tolerance
| ASTM A450 | Hot rolled | Outside Diameter, mm | Tolerance, % |
| OD≤101.6, WT≤2.4 | +40/-0 | ||
| OD≤101.6, 2.4＜WT≤3.8 | +35/-0 | ||
| OD≤101.6, 3.8＜WT≤4.6 | +33/-0 | ||
| OD≤101.6, WT>4.6 | +28/-0 | ||
| OD>101.6, 2.4＜WT≤3.8 | +35/-0 | ||
| OD>101.6, 3.8＜WT≤4.6 | +33/-0 | ||
| OD>101.6, WT>4.6 | +28/-0 | ||
| Cold Drawn | Outside Diameter, mm | Tolerance, % | |
| OD≤38.1 | +20/-0 | ||
| OD>38.1 | +22/-0 | ||
| ASTM A530 | NPS | Outside Diameter, inch | Tolerance, % |
| 1/8≤OD≤2-1/2 | +20.0/-12.5 | ||
| 3≤OD≤18, WT/OD≤5% | +22.5/-12.5 | ||
| 3≤OD≤18, WT/OD>5% | +15.0/-12.5 | ||
| OD≥20, WT/OD≤5% | +22.5/-12.5 | ||
| OD≥20, WT/OD>5% | +15.0/-12.5 |
Standard
ASTM A335--for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service
ASTM A519--for Seamless Carbon and Alloy Steel Mechanical Tubing
ASTM A213--for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM ASME (S)A-335/(S)A-335M Grade and Chemical Composition
| Grade | UNS | C≤ | Mn | P≤ | S≤ | Si≤ | Cr | Mo |
| P1 | K11522 | 0.10~0.20 | 0.30~0.80 | 0.025 | 0.025 | 0.10~0.50 | - | 0.44~0.65 |
| P2 | K11547 | 0.10~0.20 | 0.30~0.61 | 0.025 | 0.025 | 0.10~0.30 | 0.50~0.81 | 0.44~0.65 |
| P5 | K41545 | 0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 4.00~6.00 | 0.44~0.65 |
| P5b | K51545 | 0.15 | 0.30~0.60 | 0.025 | 0.025 | 1.00~2.00 | 4.00~6.00 | 0.44~0.65 |
| P5c | K41245 | 0.12 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 4.00~6.00 | 0.44~0.65 |
| P9 | S50400 | 0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50~1.00 | 8.00~10.00 | 0.44~0.65 |
| P11 | K11597 | 0.05~0.15 | 0.30~0.61 | 0.025 | 0.025 | 0.50~1.00 | 1.00~1.50 | 0.44~0.65 |
| P12 | K11562 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 0.80~1.25 | 0.44~0.65 |
| P15 | K11578 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 1.15~1.65 | - | 0.44~0.65 |
| P21 | K31545 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 2.65~3.35 | 0.80~1.60 |
| P22 | K21590 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 1.90~2.60 | 0.87~1.13 |
| P91 | K91560 | 0.08~0.12 | 0.30~0.60 | 0.020 | 0.010 | 0.20~0.50 | 8.00~9.50 | 0.85~1.05 |
| P92 | K92460 | 0.07~0.13 | 0.30~0.60 | 0.020 | 0.010 | 0.50 | 8.50~9.50 | 0.30~0.60 |
Note: (S)A335 P91 other chemical composition are : V 0.18~0.25; N 0.030~0.070; Ni ≤ 0.40; Al ≤ 0.04 ; Nb 0.06~0.10
(S)A335 P92 other chemical composition are : V 0.15~0.25; N 0.030~0.070; Ni ≤ 0.40; Al ≤ 0.04 ; Nb 0.04~0.09; W 1.5~2.00 ; B 0.001~0.006

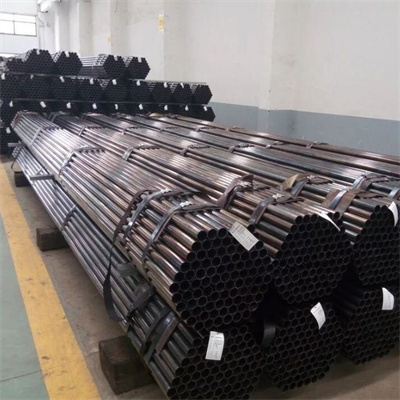

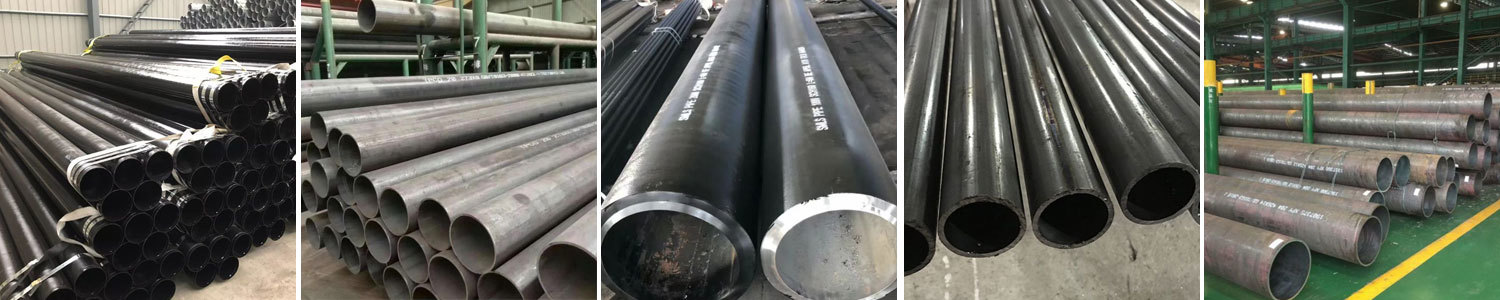

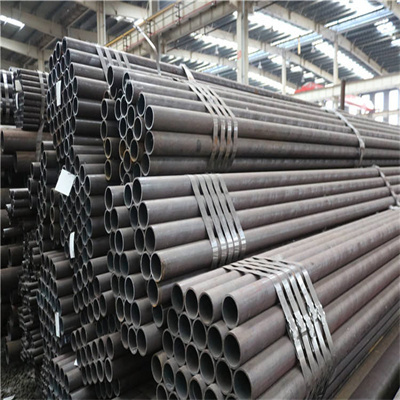

Products Display

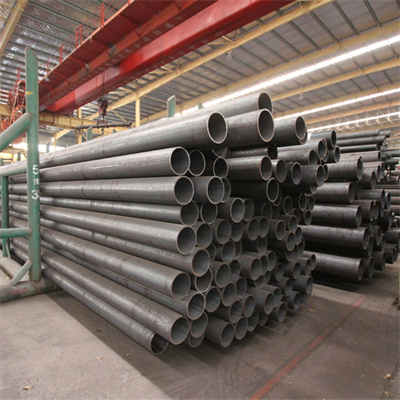

Warehouse Storage
We are a manufacturer and exporter specializing in the research, production, sales, packaging and after-sales service of metal materials. We have been engaged in export trade for more than 10 years and have rich experience in this field.

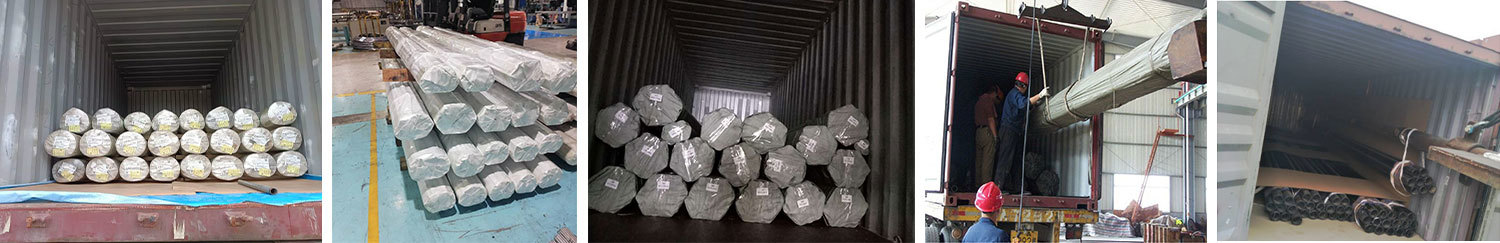

Packing and shipping
