Seamless Steel Pipe

Seamless pipe, as the name suggests, is a pipe without a seam or a weld-joint. Seamless Steel Pipe is made from a solid round steel ‘billet’ which is heated and pushed or pulled over a form until the steel is shaped into a hollow pipe.

Category：

Seamless Pipe

E-mail:

diana@baixinxinmetal.com

Product Message

Related products

Keyword：

Seamless Pipe

Product Description

Product introduction

This specification covers wall seamless and welded carbon and alloy steel pipe intended for use at low temperatures. The pipe shall be made by the seamless or welding process with the addition of no filler metal in the welding operation. All seamless and welded pipes shall be treated to control their micro-structure. Tensile tests, impact tests, hydro-static tests, and nondestructive electric tests shall be made in accordance to specified requirements.
1. Scope
1.1 This specification covers nominal (average) wall seamless and welded carbon and alloy steel pipe intended for use at low temperatures. Several grades of ferric steel are included as listed in Table 1. Some product sizes may not be available under this specification because heavier wall thicknesses have an adverse affect on low-temperature impact properties.
1.2 Supplementary Requirement S1 of an optional nature is provided. This shall apply only when specified by the purchaser.
1.3 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in non-conformance with the specification. The inch-pound units shall apply unless the "M" designation of this specification is specified in the order.

Technical data

Seamless Steel Pipe Chemical Composition and Mechanical Properties

This data is a brief summary of the referenced standard. It is informational only and not an official part of the standard; the full text of the standard itself must be referred to for its use and application. ASTM does not give any warranty express or implied or make any representation that the contents of this abstract are accurate, complete or up to date.

Standard	Grade	Chemical Composition (%)					Mechanical Properties
ASTM A53	Grade	C	Si	Mn	P	S	Tensile STrength(Mpa)	Yield STrength(Mpa)
	A	≤0.25	-	≤0.95	≤0.05	≤0.06	≥330	≥205
	B	≤0.30	-	≤1.2	≤0.05	≤0.06	≥415	≥240
ASTM A106	A	≤0.30	≥0.10	0.29-1.06	≤0.035	≤0.035	≥415	≥240
ASTM A106	B	≤0.35	≥0.10	0.29-1.06	≤0.035	≤0.035	≥485	≥275
ASTM A179	A179	0.06-0.18	-	0.27-0.63	≤0.035	≤0.035	≥325	≥180
ASTM A192	A192	0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035	≥325	≥180
API 5L PSL1	A	0.22	-	0.90	0.030	0.030	≥331	≥207
	B	0.28	-	1.20	0.030	0.030	≥414	≥241
	X42	0.28	-	1.30	0.030	0.030	≥414	≥290
	X46	0.28	-	1.40	0.030	0.030	≥434	≥317
	X52	0.28	-	1.40	0.030	0.030	≥455	≥359
	X56	0.28	-	1.40	0.030	0.030	≥490	≥386
	X60	0.28	-	1.40	0.030	0.030	≥517	≥448
	X65	0.28	-	1.40	0.030	0.030	≥531	≥448
	X70	0.28	-	1.40	0.030	0.030	≥565	≥483
API 5L PSL2	B	0.24	-	1.20	0.025	0.015	≥414	≥241
	X42	0.24	-	1.30	0.025	0.015	≥414	≥290
	X46	0.24	-	1.40	0.025	0.015	≥434	≥317
	X52	0.24	-	1.40	0.025	0.015	≥455	≥359
	X56	0.24	-	1.40	0.025	0.015	≥490	≥386
	X60	0.24	-	1.40	0.025	0.015	≥517	≥414
	X65	0.24	-	1.40	0.025	0.015	≥531	≥448
	X70	0.24	-	1.40	0.025	0.015	≥565	≥483
	X80	0.24	-	1.40	0.025	0.015	≥621	≥552

Carbon Steel Seamless Pipe Chemical Composition and Mechanical Properties :

Standard

Grade

Chemical Composition

Mechanical Properties

Tensile Strength(Mpa)

Yield Strength(Mpa)

Elongation(%)

GB/T8163

0.07-0.14

0.17-0.37

0.35-0.65

≤0.035

≤0.15

≤0.25

335-457

≥205

≥24

0.17-0.24

0.17-0.37

0.35-0.65

≤0.035

≤0.25

410-550

≥245

≥20

Q345

0.12-0.20

0.20-0.55

1.20-1.60

≤0.045

490-665

≥325

≥21

Carbon Steel Seamless Pipe Tolerance :

Pipe types	Pipe Szie(mm)		Tolerances
Hot rolled	OD	All	±1% (min ±0.50mm)
Hot rolled	WT	All	+15%, -12.5%
Cold drawn	OD	6～10	±0.20mm
		10～30	±0.40mm
		30～50	±0.45mm
		>50	±1%
	WT	≤1	±0.15mm
		>1～3	+15% -10%
		>3	+12.5% -10%

Seamless Steel Pipe End :

Plain End	Wall Thickness less than 0.5 inch, including SCH STD & SCH XS
Plain End (Square Cut)	Wall Thickness over 0.5 inch, including SCH XXS
Beveled End	Wall Thickness less than 0.5 inch, including SCH STD & SCH XS
Couplings	Outside Diameter equal or less than 2''
Thread Protection	Outside Diameter over 4 inch

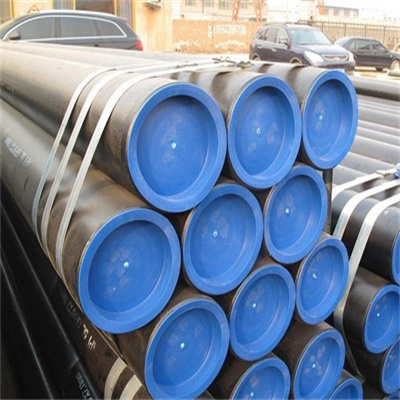

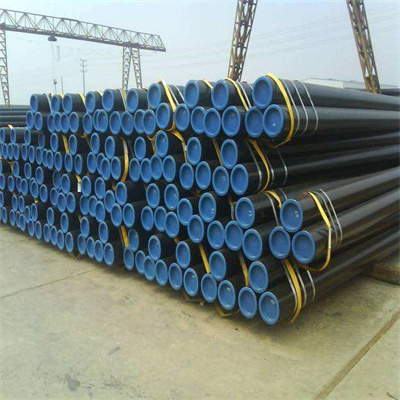

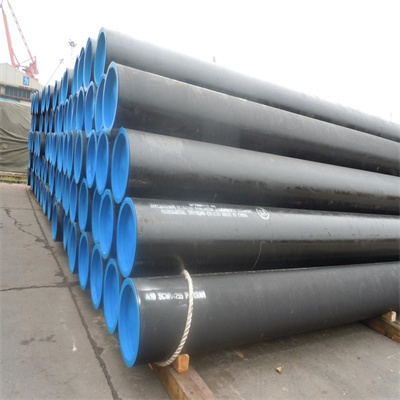

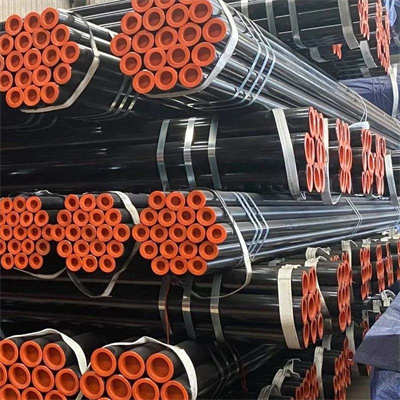

Products Display

Warehouse Storage

We are a manufacturer and exporter specializing in the research, production, sales, packaging and after-sales service of metal materials. We have been engaged in export trade for more than 10 years and have rich experience in this field.

Packing and shipping

Our main products include carbon steel plate, carbon steel pipe, stainless steel plate, stainless steel pipe, galvanized sheet, galvanized coil, weathering steel, wear-resistant plate, aluminum plate, etc.

Customer feedback

With many competitive advantages such as various products, large inventory, high quality, low price, short delivery time, good after-sales service, our products are popular in China and exported to South Korea, Japan, Russia, Germany, the United Kingdom, Austria, the Czech Republic, Hungary, the Netherlands, Slovenia, Bulgaria, Egypt, Saudi Arabia, Iran, Kuwait, the United Arab Emirates, Türkiye, Israel, Syria Lebanon, Jordan, Yemen, Cyprus, Philippines, Vietnam and Malaysia...

Application field

Company always adheres to the tenet and business spirit of "survival based on quality and development based on reputation", and takes quality as the basis and integrity as the first.
